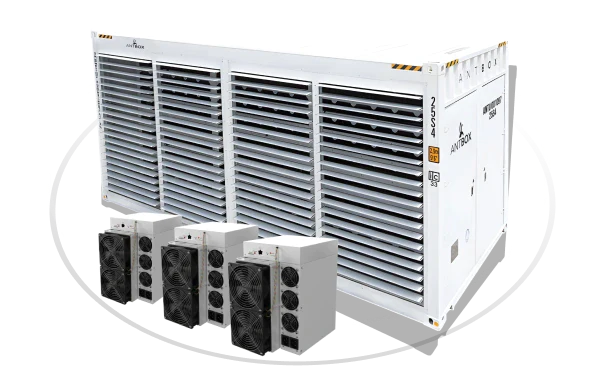

BITMAIN ANTBOX
CONTAINER BUNDLE
Container Bundles combine transformers and mining equipment, putting you in control of the workload.
SOLUTIONS MADE FOR YOU
ANTBOX BENEFITS
Experience a new world of Bitcoin mining with the Bitmain Antbox Mining Container.
Energy Saving Design
Fast to deploy
Easily Transported
Cost-Effective
Optimal Productivity
Safe and Reliable
WATTUM CONTAINER SPECIFICATIONS
-
CONTAINER DIMENSIONS
Type of sea container, feet20 HQ20-ft HQ cargo container, pcs1EXTERNALLength20' (6058 mm)Width7' (2438 mm)Height8'1 (2896 mm) -
GENERAL SPECIFICATIONS
Hauled weight4.4 US ton (4053 kg)Operating weight7.9 US ton (7200 kg)ColorFactory default whiteTotal capacity745KWNumber of Asic devices207(3.5 kW each)Applicable Mining machineS19 Series AntminersFrequency, Hz50/60HzSafety CertificationUL/CSAOperational conditionsfrom -13°F to +104°F (-25°C +40°C)Working Humidity10%-90%Plug&PlayYesSecurity CameraYesLightweight materialsYesPrice$95,000$95,000 - 9 week waityour price $95,000TypeContainersModel745KW Antbox N5 V2 Container 20'ConditionNewLocationUSAROICall salesHostingWattum HostingHash Rate@PowerCall salesAvailabilityIn stockManufacturerWattum -
ELECTRICAL EQUIPMENT
Power Distribution Cabinet1 setInput Voltage, V380-415 ACCapacity of the main switch1250APDU24 (Each: C13X18 (Mining Machine) +C13X1 (Switch))Power Consumption3200-3600 WSwitch12 set (24 Ports)Transformer Adaption2500 KVA transformer with 3 containersInlet indicatorGreen light -
HEAT MANAGEMENT AND COOLING SYSTEM
Cooling Pad2pcs of 25mm Inlet TubeManual ShutterYesAugmented heat isolationYesFan-less design with shutters for air in and outYesFireproof and flame retardant materialsYes -
NETWORK SYSTEM
Intel CableSingle Core 600kcMil (300 mm2) *4*5, Above 600 VEthernet Cable207 FIP Single Shielded CableAC Cable207*2 PCS (C14 Female Connector on one terminal, ?13 Male Connector on the other terminal. UL certificate) -
INSTALLATION
Rated Curent1250 AThe ground should be hardened enough to support3 floors (22t)The flatness of the ground-1The broadband of internet in the field100MThe ether cableSFTP/CAT5eCan be easily movedYesAssembly HeightNot recommended to be more than 3 layers, 342 inchAssembly LengthNot recommended to be over 6 setsArrangement ModeAir inlets should be in the opposite sitesDistance between inlets29 ft recommended (900 mm)Distance between each row and group of containers6 ft recommended (200 mm)
BITMAIN ANTMINER S19 MINERS
Bitmain's S19 series offers the most efficient Bitcoin mining ASICs available, with a highly competitive hashrate and consumption to price ratio among crypto mining hardware.
S21 SERIES
With up to 15 different models to choose from in the Antminer S21 series, each model demonstrates the highest standard of features and specifications that can be found on today's market. The S21 offers value and a competitive advantage to your mining operations. To findthe S21 that’s right for you, we’ve included a list of all S21 models and their specifications for your reference.
Select S21 Model
Bitmain Antminer S21 HYDRO models comparison
Bitmain Antminer S21 models comparison
Bitmain Antminer S21 Pro models comparison
Compare Bitmain Antminer S21 HYDRO models
Compare Bitmain Antminer S21 models
Compare Bitmain Antminer S21 Pro models
THE 3000 KVA PAD MOUNTED TRANSFORMER
The Wattum transformer is self-cooled and is an energy efficient, low noise, pad-mounted distribution transformer with a rated capacity of 3000 kVA. Designed for commercial and residential applications, this is the perfect power supply for your mining container.
WATTUM 3 PHASE PAD MOUNTED TRANSFORMER WALKTHROUGH VIDEO
WATTUM TRANSFORMER SPECIFICATIONS
-
TRANSFORMER DIMENSIONS
Overall Dimensions, Inches80.4 (W) X 90.9 (D) X 79.9 (H)Core & Coil6,548 lb (2970 kg)Tank & Fittings4,482 lb (2033 kg)Insulation Oil3,454 lb (1566 kg)Total Weight14,770 lb (6700 kg)ColourGreen Munsell # 7.0gy-3.29/1.5 -
OTHER SPECIFICATIONS
H.V Bushing Wells & Inserts - 15 Kv 200a6 PcL.V Bushing - 2.5kv 5000a4 PcDe-Energized Tap Changer (Detc) - 5-Step, 150a1 PcOil Level Gauge1 PcOil Temperature Indicator1 PcPressure Relief Valve1 PcPressure Vacuum Gauge1 PcRadiators (Welding)3 PcLoadbreak Switch T-Blade - 4 Position, 200a1 PcOil Upper Fill Plug - 1 Inch1 PcDrain Valve With Sampler - 2 inch (51mm)2 PcGas Sample Valve1 PcPad Lockable Door Handle1 PcTank1 PcLifting Hook For Complete Transformer4 PcLV Breaker1 PcRemovable Ground Strap1 Pc2 Hole Ground Pad For Main Body3 PcMetal L.V-H.V Barrier1 PcName Plate (On Local Door)1 Pc -
GENERAL
Class3000 Kva (Onan, 3ph, 60hz, Oil Filled)High Voltage13800v Delta, 95kv BilTemperature Rise65 RiseLow Voltage415y/240v, 30kv BilCoolingONANFluidsMineral oil type IICore Design5 LeggedWindingStar or DeltaNema 3r EnclosureYesBottom FeedYesAudible Sound Level55 dbAvailabilityIn Stock -
APPLICABLE STANDARDS
Ieee C57.12.00YesIeee C57.12.90Yes
WHY CHOOSE US?
Wattum is a complete mining solutions provider, offering equipment management, optimization, and security solutions both remotely and on-site. We are a one-stop service for all of your Bitcoin mining needs.
On-site Security & Maintenance
Repair Solutions
Transaction Transparency
Technical Support
Free Consultations
Turnkey Mining Solutions
OUR PROCESSES
-
Identify Potential Site
Our team researches and identifies potential sites for your mining operations.
-
Inspect Site
Once identified, a thorough inspection is completed to ensure the site is suitable.
-
Communicate with Utility Company
Our team communicates directly with the local utility company, negotiating the best available rates.
-
Build Container
Your mobile container is built and prepared for transportation to the final site.
-
Transport Container and Transformer
As part of your bundle, the container and transformer are transported to the site.
-
On-Site Installation
Once your bundle has arrived, our team performs a complete on-site installation to help you get started as soon as possible.
TAILORED MINING SOLUTIONS
-
Location Flexibility
-
Fast to Deploy
-
Lower Startup Costs
-
Faster Go-Live
-
Sustainable Investment
-
Remote Management
